Well Report
Available data may not be sufficient to properly display this well location. Check for scout ticket information or OGB's files for location plat.
| API | Operator | Lease Name | Well Number | Well Type |
|---|
| 1 | 23057000120000 | ITAWAMBA INDUSTRIAL GAS CO | Gilmore-Puckett Lumber unit 2 | 1 | Production |
On-Line Documents
| API | Report Type | Report SubType | Image | Page |
|---|

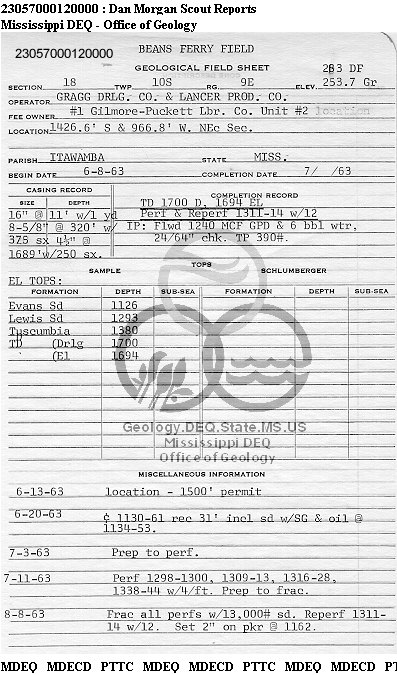

| 23057000120000 | Scout Cards | Dan Morgan | view | 1 |

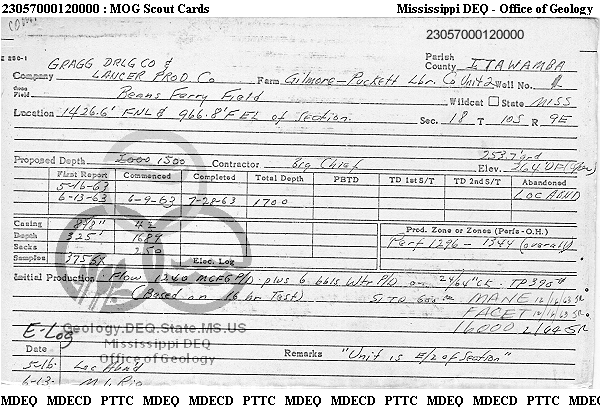

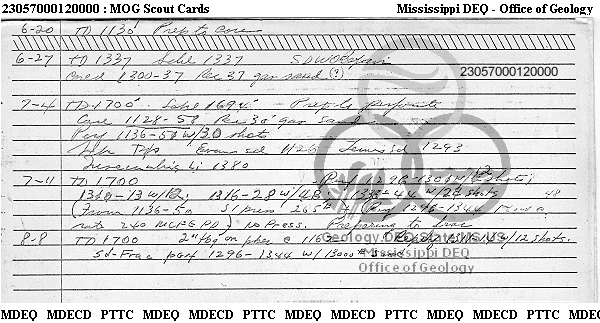

| 23057000120000 | Scout Cards | MS Office of Geology | view | 1 |
| | | view | 2 |

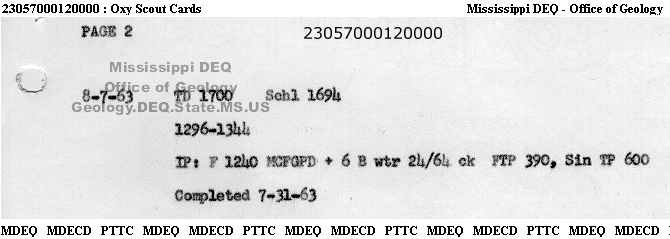

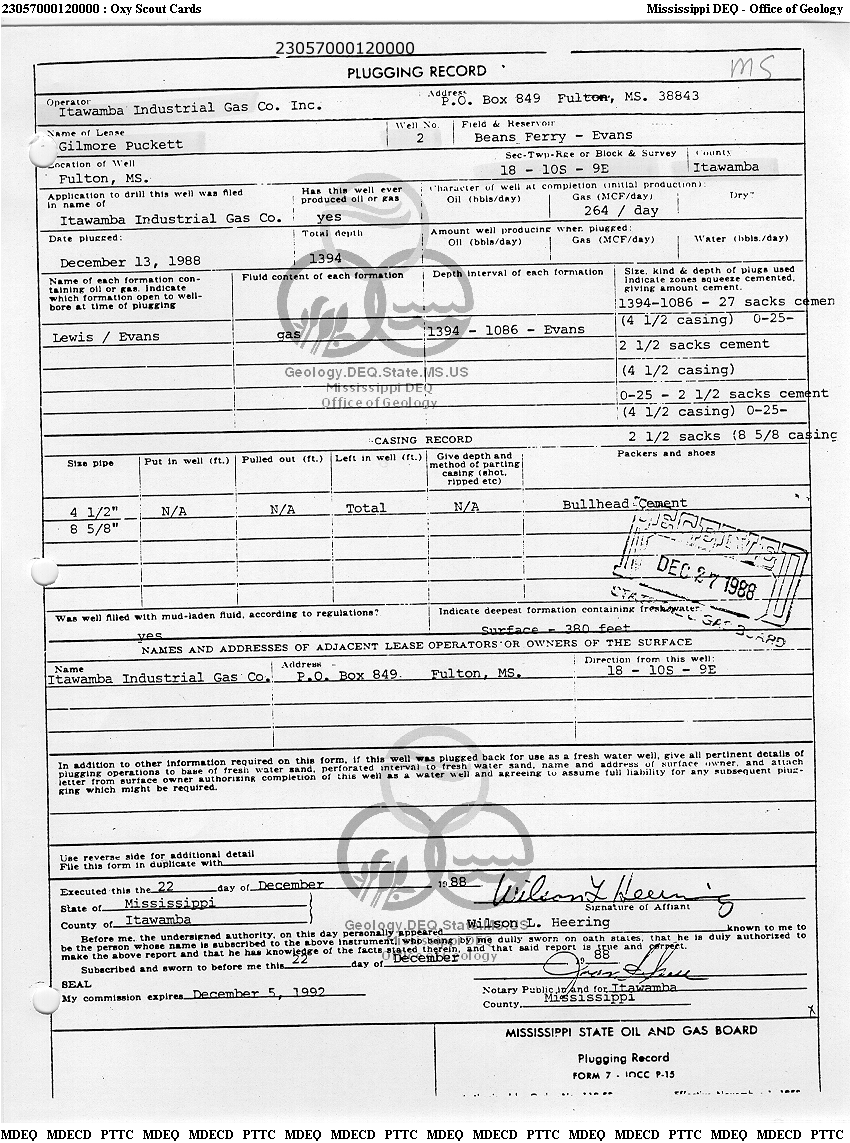

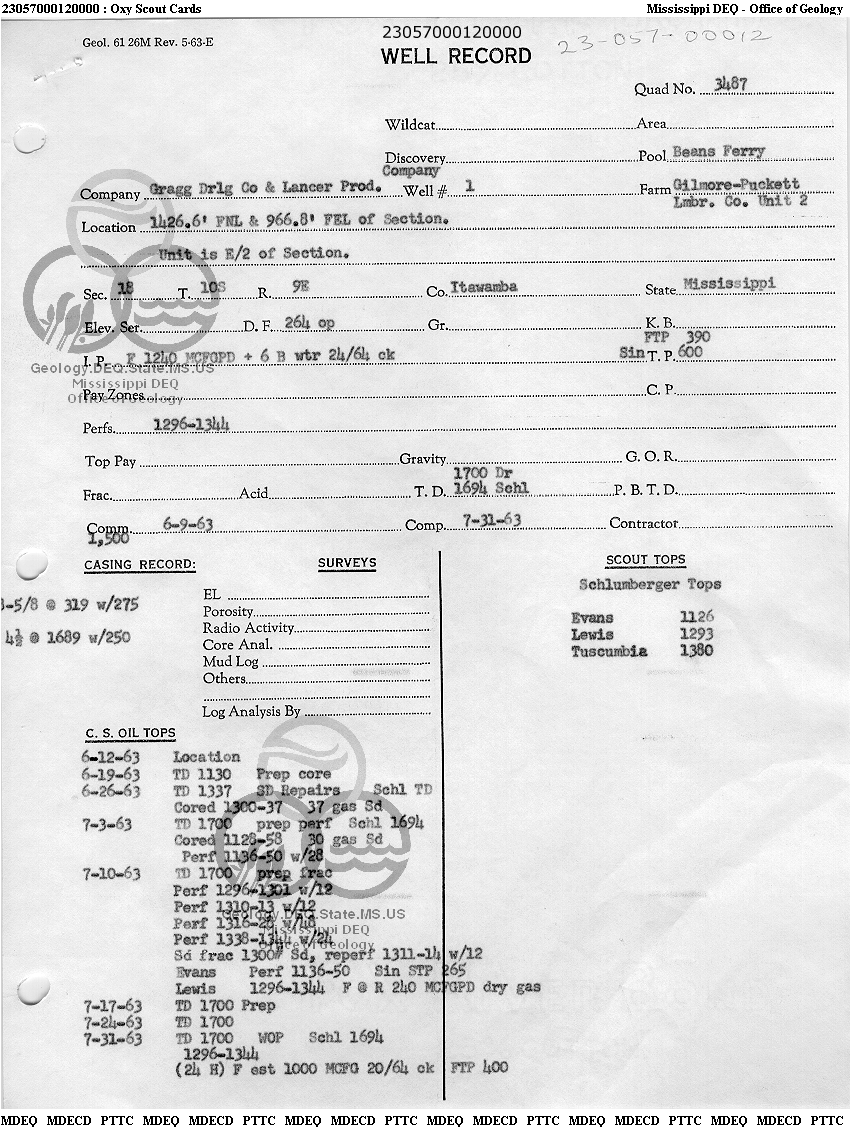

| 23057000120000 | Scout Cards | Occidental Petroleum Corporation | view | 1 |
| | | view | 2 |
| | | view | 3 |
Cores and Cuttings Warehouse
| Type | File Number | Top | Bottom | Comment |
|---|
| 1 | Quarter Core | C-25.0-.1 | 1586 | 1646 | ? Missing core |
| 2 | Samples | 2609.0 - .1 | 400 | 1365 | E-Log Available Core chips in box 2609.1 (1131 - 1303) |
