Well Report
Available data may not be sufficient to properly display this well location. Check for scout ticket information or OGB's files for location plat.
| API | Operator | Lease Name | Well Number | Well Type |
|---|
| 1 | 23127200200000 | CALLON PETROLEUM CO. | Ainsworth gas unit | 1 | Production |
On-Line Documents
| API | Report Type | Report SubType | Image | Page |
|---|

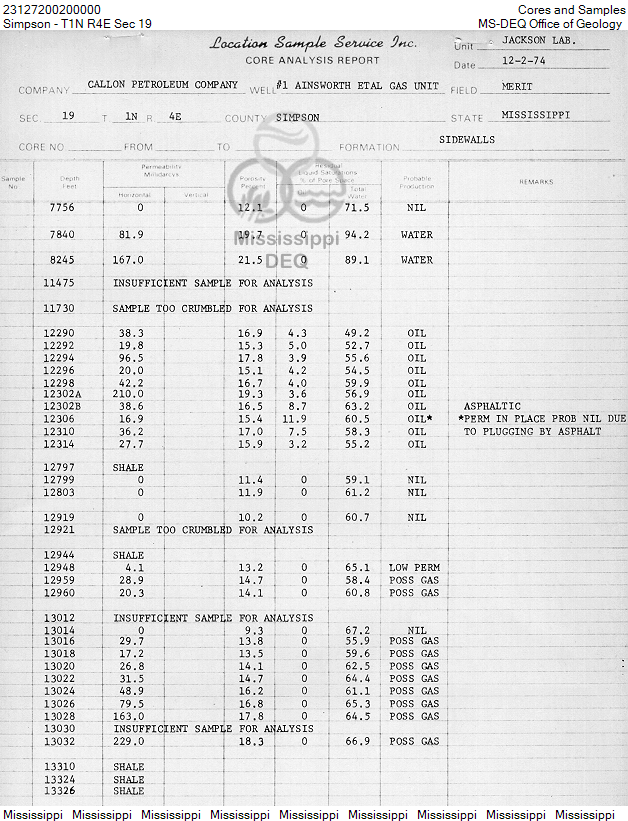

| 23127200200000 | Core and Sample Data | Core Analysis | view | 1 |

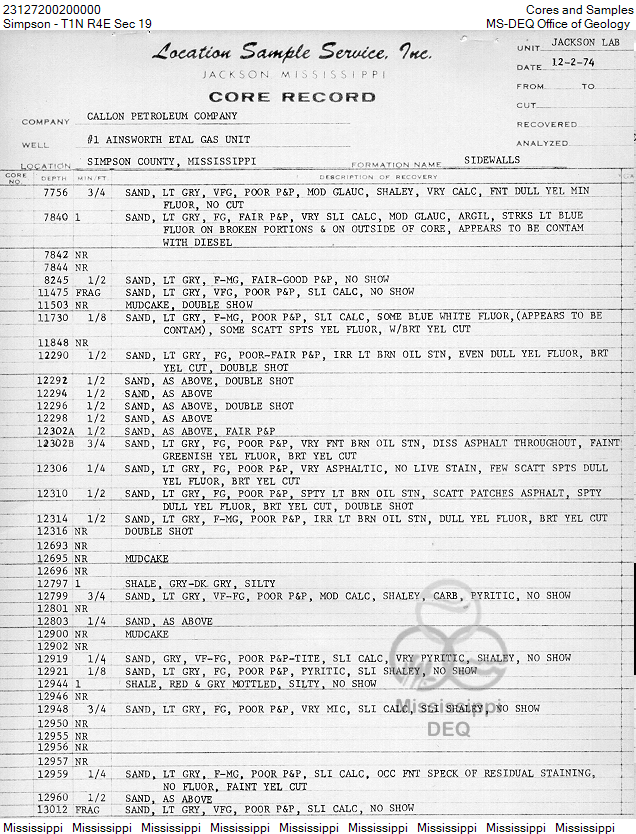

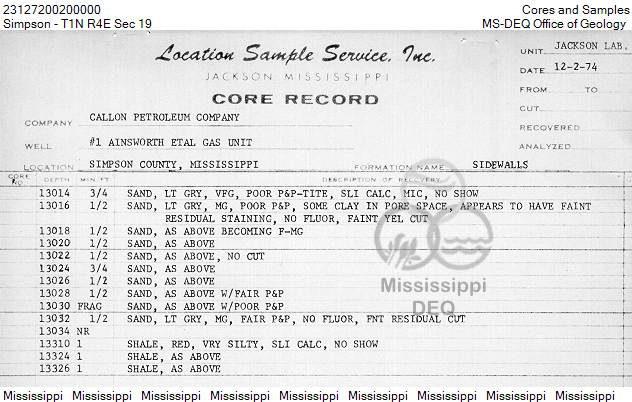

| 23127200200000 | Core and Sample Data | Core Description | view | 1 |
| 23127200200000 | Core and Sample Data | Core Description | view | 1 |
| 23127200200000 | Misc Logs | Induction Electric Log | view | 1 |
| 23127200200000 | Mud Logs | Mud Log 5 inch | view | 1 |

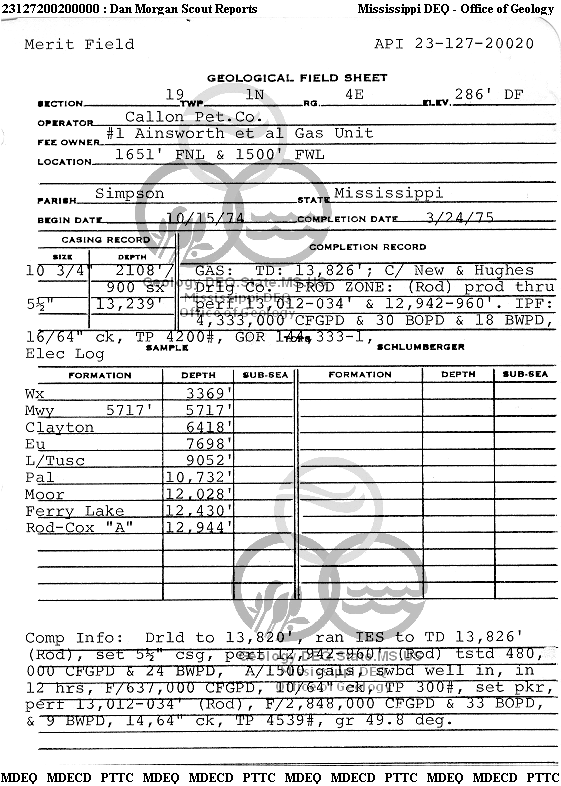

| 23127200200000 | Scout Cards | Dan Morgan | view | 1 |

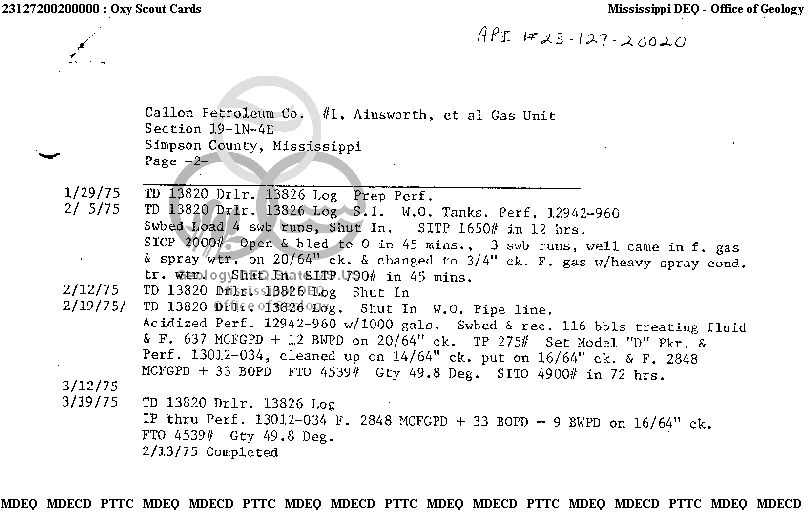

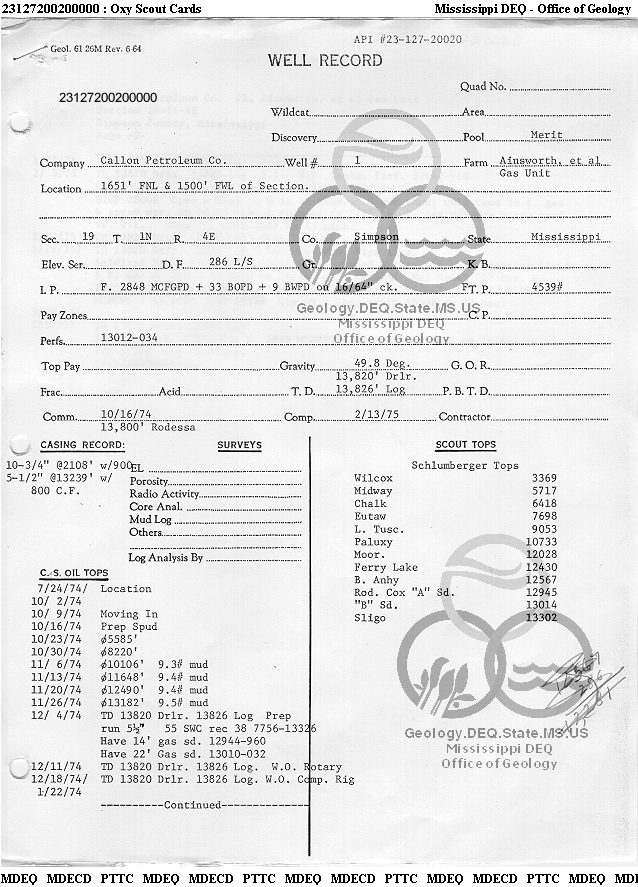

| 23127200200000 | Scout Cards | Occidental Petroleum Corporation | view | 1 |
| | | view | 2 |
Cores and Cuttings Warehouse
| Type | File Number | Top | Bottom | Comment |
|---|
| 1 | Samples | 4896.0 - .9 | 13500 | 19723 | E-Log N/A |
