Borehole Report

HomeViewerImageryStreetTopo
Borehole Id 107U0063
County Panola (107)
Owner MDEQ - OFFICE OF LAND & WATER
Well Name PA-U-708 - (WHITTEN #2)
Driller
MISSISSIPPI GEOLOGICAL SURVEY
Drill Date
GridId 107U
Twn, Rng, Sec 10S - 8W - 8
Qtr Qtr Irr SEC
OLWR Permit
Lat, Lon 34.22472, -90.06306
Remarks
STRATIGRAPHIC TEST HOLE
PLS District 0
PLSSectionCentroid 0,0
Available data may not be sufficient to properly map this borehole location.
Bit Size 5.000"
Elevation 231
Total Depth 280
Screen
Net Screen Interval Length
Screen Diameter
Static Water Level
Yield
Logger MOOG
Log: Min Depth 0
Log: Max Depth 280
Log Date
Log: Analog False
Log: Curves GR,SP,SPR,R8,16,32,64
Log: Unit LOGSHELL
Documents:

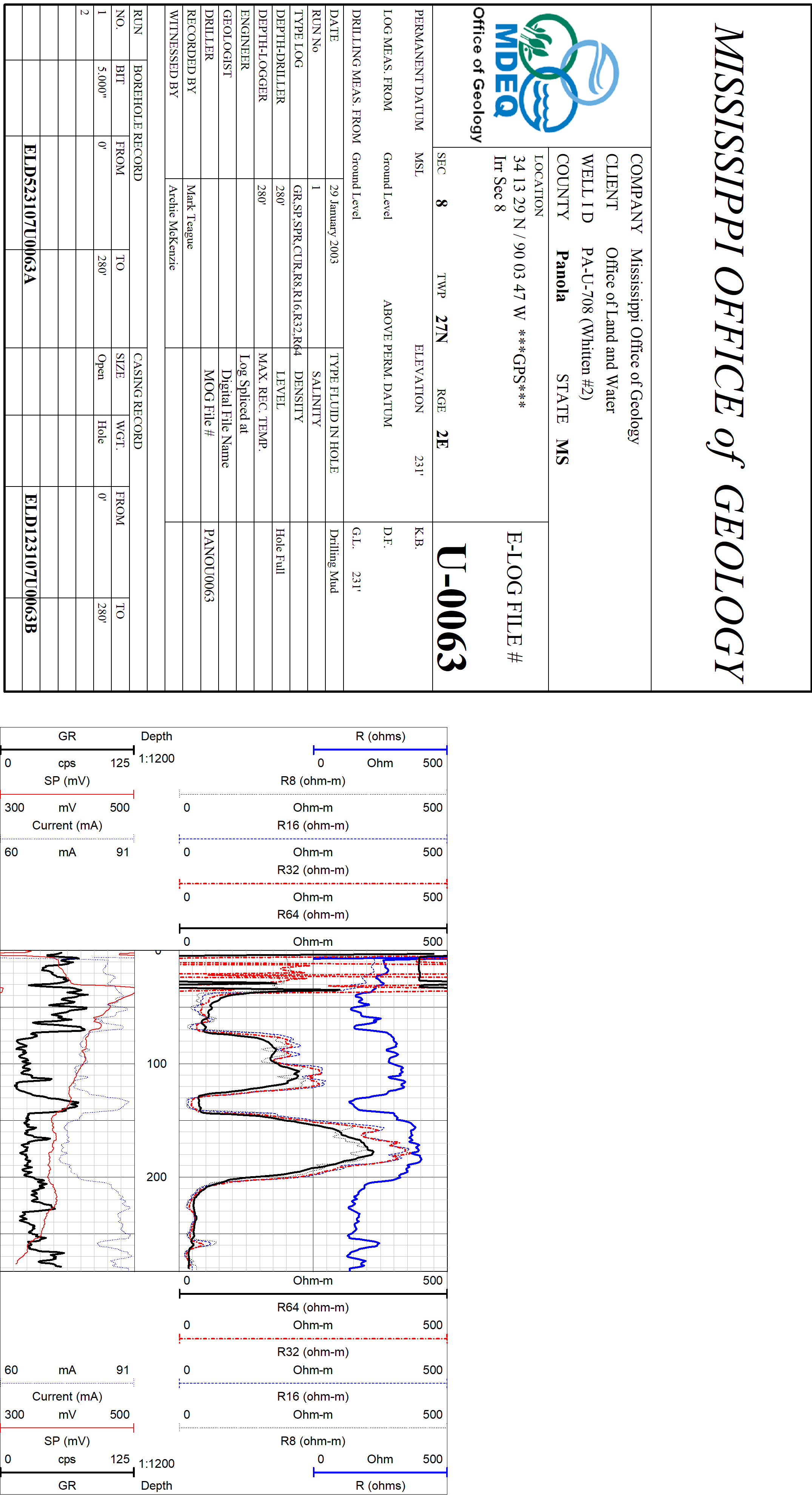

Digital Log 1 Inch

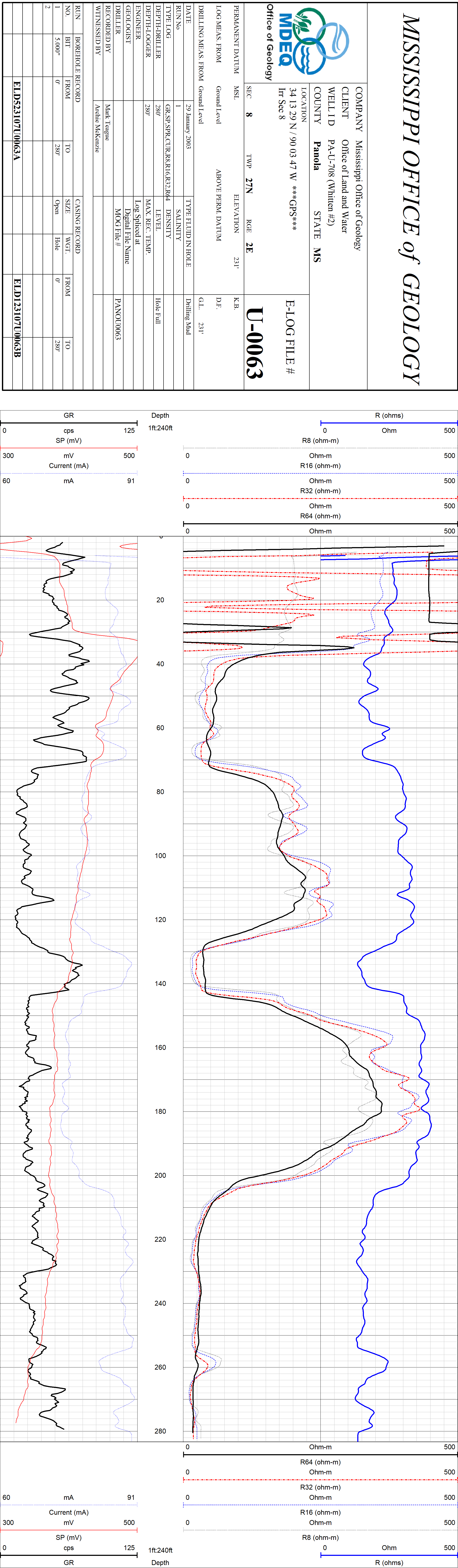

Digital Log 5 Inch
